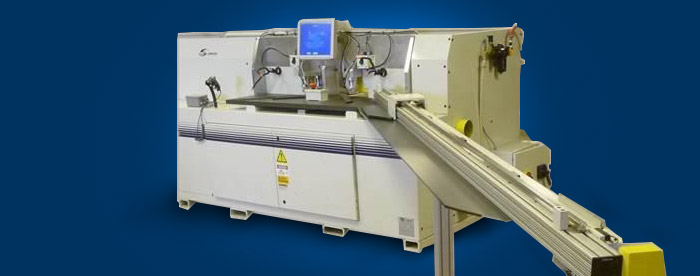

Jenkins Single- Sided CNC Miter Machine precisely miters, tenons and mortises each end of the product. Variable custom cutting routines allow for the most flexibility for a wide variety of moulded stock. Simplicity in operation produces high quality parts with minimal training. Pendulum processing keeps the machine busy.

Features

Rugged Steel Base

Tubular steel frame forms a robust and rigid foundation. All axes utilize high-efficiency linear bearings and ballscrews to provide rigidity and achieve smooth motions.

Programming Software

The blind mortise and tenon joint is fully customizable for size and position of the tenon and mortise, controlled through a simple graphical touchscreen interface. Material can be cut face up or face down.  Variable cutting routines allow for the most flexibility providing the ability to cut the most challenging profiles with unsurpassed cut quality.

Direct Drive Spindles

Utilizing 10HP miter & tenon motors and a 5HP mortise motor.

CNC Controlled Automatic Cutting

Precise servo control provides machining accuracy and repeatability. Minimal distortion in the tenon shape is a product of the CNC accuracy.

Graphical Touch Screen Interface

User friendly operator interface utilizes an icon driven menu system. Operation of the machine is as simple as touching an icon on the screen, loading the wood, and removing your hands from the loading area. Training is made quick and easy with on-screen graphical instruction prompting the operator.

Options

Sizing Fence

Outboard fence allows the single sided machine to accurately cut mitered parts to the desired length. Breakaway part stop is standard for safety.

Automatic Lubrication

Fully customizable lubrication intervals make certain that all the bearings and ballnuts have adequate lubrication.

Barcode Scanner

Automate your machine setup with a bar code scanner. This eliminates operator error and speeds the start of the setup process.
