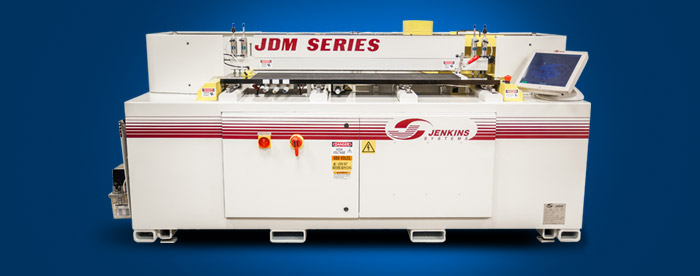

Jenkins Dual Spindle CNC Shaper makes manufacturing high quality arched doors easy. The base structure is constructed of tubular steel weldments and a solid steel table to insure vibration-free accuracy. Now available in three sizes: compact 24" cutting capacity, standard 48" cutting capacity, and extended 96" cutting capacity. All sizes feature: compact footprint, counter-rotating tooling, full CNC control, HSK-63F quick-change, direct drive spindles, and easy-to-use touchscreen graphical user interface.

Features

CNC High-Speed Counter-Rotating Spindles

Counter-rotating spindles with multi-pass machining eliminates tear out and greatly reduces grain lifting to provide a smoother finish at faster feed rates when compared to single tool applications.

Quick-Change Tooling

Pneumatically released spindles provide quick, easy, and safe tool changes. ISO and HSK styles are available. Stacking is routine.

CNC Controlled Automatic Shaping

Continuous Mode arching capability calculates arch shape geometry for a specific width based on only three parameters: arch height, shoulder length, and fillet radius. Continuous Mode radii are scaled based on automatically measured stock dimensions allowing the shoulder dimension and arch height to remain constant for all possible sizes. Family Mode programmable template matching capability produces parts that match components from other shapers and eliminates the need for cumbersome templates.

Graphical Touch Screen Operator Interface

User friendly operator interface utilizes a graphical menu system. Operation of the machine is as simple as touching an icon on the screen, loading the wood, and pressing the clamp and cycle icons. Training is made quick and easy with on-screen graphical instruction prompting the operator, and online user's manual for quick reference.

Software Features

Six preprogrammed standard door styles provided with spilt arches for all.
Custom arch styles can be easily created utilizing graphical geometry setup menus. Up to 1,200 custom arch styles can be saved for future use to minimize setup time. Tooling compensation utility automatically adjusts part setup for changes to tooling dimensions.

Ruggest Steel Base and Table

Tubular steel frame and solid steel table with high efficiency bearings provide low maintenance and high accuracy.

Maintenance Access

Recently redesigned frame to provide full access to the rear of the machine. Walk in the machine to perform any maintenance required. Doors are interlocked for safety.

Options

96" Maximum Cutting Capacity

Extended base machine with 96" cutting capacity providing all the flexibility of a standard size machine with larger stock capability.

Automatic Tool Changer

Automatic tool changing system minimizes profile changeover times. Many capacities are available.

Door Machine Plus Model

Larger capacity components for cutting up to 1-3/4" thick stock for architectural doors.

Automatic Lubrication

Fully customizable lubrication intervals make certain that all the bearings and ballnuts have adequate lubrication.

Barcode Scanner

Automate your machine setup with a bar code scanner. This eliminates operator error and speeds the start of the setup process.
